Quad Serial FPDP Recorder

Multi-Channel Serial FPDP board that support up to a 5.0 Gb/s serial data link which utilizes a highly specialized communications protocol optimized for maximum data throughput.

Overview

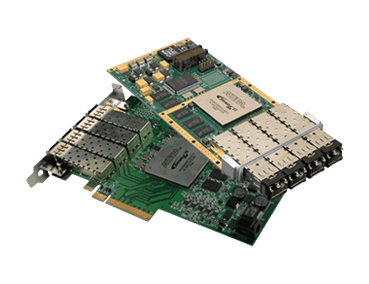

FibreXtreme SL100/SL240/SL500 are Multi-channel data recorder boards based on the technology pioneered in the original Simplex Link series. FibreXtreme SL100/SL240/SL500 multi-channel Serial FPDP (sFPDP) boards blast data up to a sustained 494 MB/s on each of the four channels available.

FibreXtreme Serial FPDP Multi-channel data recorder supports up to a 5.0 Gb/s serial data link which utilizes a highly specialized communications protocol optimized for maximum data throughput. Data transfers occur without the CPU overhead and non-deterministic latencies associated with many layers of complex communication protocols. The SL100/SL240/SL500 on-board Direct Memory Access (DMA) engine is optimized for maximum data throughput without processor intervention. DMA and register byte swapping provide additional system flexibility.

TECHNICAL SPECIFICATIONS

  • 1, 2 or 4 full speed channels
  • PCIe and XMC x 8 form factors
  • Compatible with x 16 and x 32 PCIe slots
  • 4 x independent data streams to host
  • 256 Mbytes of on-board DDR2 SDRAM
  • Supports 1.0625 Gb/s, 2.5 Gb/s and 5.0 Gb/s serial data rates
  • ANSI/VITA 17.1-2003 sFPDP protocol
  • Support for front and rear I/O options
  • Up to 494 MB/s sustained data rate simultaneously on each channel
  • Extends FPDP connections up to 50 km
  • Various levels of error detection and status reporting
  • Applications: Digital signal processing, Radar and sonar, Medical imaging, Range and telemetry systems, Video production
