Redefining Edge Performance: One SoM, Infinite Potential

The MRD8550 System on Module (SoM) is a cutting-edge solution powered by the Qualcomm® Dragonwing™ QCS8550 processor. Equipped with a powerful Artificial Intelligence (AI) Engine, the QCS8550 offers an impressive 48 TOPS of AI performance, enabling it to handle complex AI-driven tasks with ease. Additionally, it features robust wireless connectivity through Wi-Fi 7 and Bluetooth 5.3, ensuring seamless and high-speed communication.

The MRD8550 SoM incorporates the Qualcomm Spectra ISP, offering support for up to five concurrent cameras and AI-enhanced imaging with object-based pixel processing. The MRD8550 SoM seamlessly blends AI, machine learning, and IoT capabilities, making it an indispensable component for the future of autonomous machines and smart devices.

DataSheet

On-Device AI Engine and 5G Support

The MRD8550 SOM harnesses the power of the 8th generation Qualcomm® AI Engine incorporating the Hexagon Tensor Accelerator, which facilitates a staggering 48 TOPS performance with maximum efficiency to run complex AI and deep learning workloads at the edge.

Superior Graphics Processing

Advanced video and graphics processing enables immersive experiences across gaming, video collaboration, and streaming applications.

High-Performance Computer Vision

Dedicated computer vision engine enables advanced applications in Robotics, Drones and other intelligent machines, significantly reducing latency while allowing real-time image processing, enhancing the precision and speed of visual data analysis.

Quick-to-Market Support

The MRD8550 SOM comes with a flexible software package that enables developers to accelerate product realization. Its highly efficient hardware and software combination streamlines development, reducing time-to-market for innovative Edge AI solutions.

The device is manufactured in a 4nm process node and features high-speed image processing capabilities of up to 2-Gigapixels per second. It supports 8K video recording and 4K HDR video capture, providing superior graphics for larger-than-life immersive experiences. Additionally, the device supports sophisticated on-device AI processing and delivers mobile-optimized computer vision (CV) experiences. It is equipped with a highly secure processing unit and supports Ubuntu and Linux.
MRD8550 Falcon Kit LR - WiFi
MRD8550 Falcon Kit LR - WiFi

MRD8550 Falcon Kit LR wifi is a long range variant of the Falcon kit comes integrated with DoodleLabs' 11AX Industrial Wi-Fi Transceivers. Built around the powerful Qualcomm® QCS8550 SoC and integrated with the CubePilot CubeOrange+ Flight Controller Unit, the MRD8550 Falcon Kit LR-WiFi is a next-generation aero intelligent edge controller designed for industrial drones, autonomous robots, and edge AI systems.

The variant offers robust connectivity for high throughput datalinks over extremely long ranges with low latency, enhanced coverage, and high security. These features enable developers to achieve unparalleled wireless networking capabilities in autonomous drones and intelligent robot systems.

Read More
Qualcomm QRB5165, Qualcomm QRB5165 SOC, Qualcomm Robotics RB5 Development Kit, Qualcomm Robotics RB5 Platform

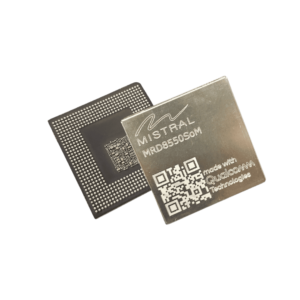

MRD8550 SOM
MRD8550 SOM

Redefining Edge Performance – One SoM, Infinite Potential

The MRD8550 System on Module (SoM) is a high-performance edge AI platform built on the Qualcomm® Dragonwing™ QCS8550 processor. With 48 TOPS of AI processing power and support for Wi-Fi 7 and Bluetooth 5.3, it delivers robust computing and seamless connectivity. The integrated Qualcomm Spectra ISP enables multi-camera support and AI-enhanced imaging, making it ideal for next-gen autonomous machines and intelligent IoT devices.

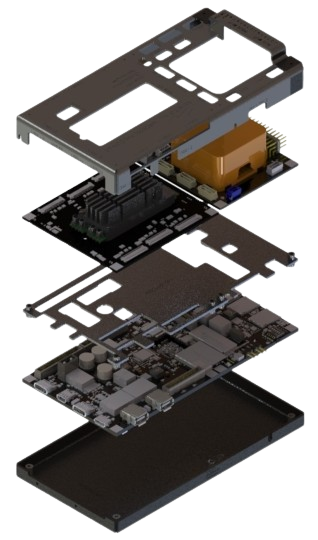

MRD8550-Falcon-Kit-Drone Electronics Design
previous arrow
next arrow

Supports Linux Embedded and Android, with Qualcomm AI Stack and SDKs for optimized on-device AI and real-time edge inferencing.

The MRD8550 SOM supports both LE (Linux Embedded) and LU (Linux  Ubuntu), offering the flexibility to choose between power efficiency and feature-rich environments for development platforms. This enables the rapid development of IoT products, with Linux kernel 5.15 providing long-term product support.



The software also supports the Qualcomm AI Stack, equipping OEMs and developers with tools to integrate advanced AI capabilities. AI models already developed on the Qualcomm AI Stack can be easily loaded and deployed, with support for popular frameworks like TensorFlow, PyTorch, and ONNX, as well as runtimes such as TensorFlow Lite and ONNX Runtime. With the included Qualcomm Neural Processing SDK, developers can optimize AI models for real-time performance, making it ideal for applications in flight safety, visual localization, and more.

MRD8550 Falcon Kit, QCS8550 Drone Controller, MRD8550 drone controller, intelligent edge controller, Edge AI drone controller

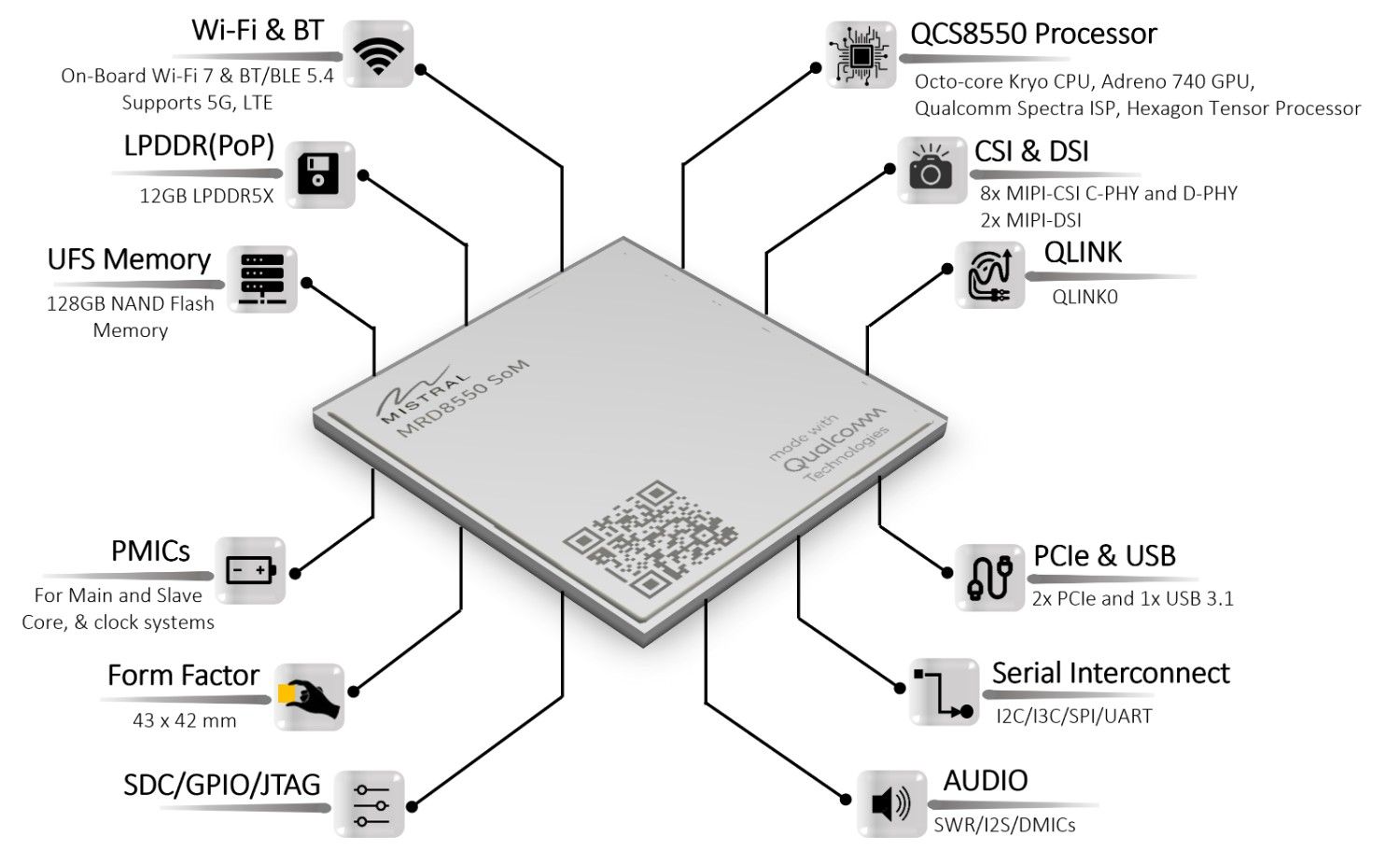

Advanced platform with a wide range of interface and connectivity options

The MRD8550 SOM is built around Qualcomm’s advanced Dragonwing™ QCS8550 platform, designed for high-performance edge AI, multimedia, and wireless applications. Packed into a compact 43x42mm form factor, this SOM integrates a powerful octa-core Kryo™ CPU, next-gen Adreno™ GPU, advanced DSPs, and rich multimedia and connectivity interfaces. With support for high-speed LPDDR5X, UFS 3.1, and Wi-Fi 7 (802.11be), the MRD8550 SOM delivers exceptional computing, vision, and communication capabilities for drones, robotics, edge AI devices, and industrial applications.

  • Platform (Qualcomm Dragonwing™ QCS8550)
  • Octa Core Qualcomm® Kryo™ CPU @ 3.2 GHz
  • Qualcomm® Hexagon™ Tensor DSP
  • Qualcomm® Spectra™ Image Processing Engine
  • Qualcomm® Adreno 8550 VPU
  • Qualcomm® Adreno 1295 DPU
  • Manufactured in 4nm process
  • Memory
  • 12GB LPDDR5X, 4266 MHz (expandable up to 16GB)
  • UFS 3.1, 128GB (also supports UFS 4.0, expandable up to 1 TB)
  • Multimedia
  • Display: Dual MIPI D-PHY Interfaces
  • Camera: 8x MIPI CSI C-PHY 2.0 / D-PHY 1.2 interfaces
  • Connectivity
  • USB: 1x USB 3.1 port, Gen2 10 Gbps; Support Type-C with DisplayPort v1.4
  • PCIe: 1x 2-lane Gen 3 & 1x 2-lane Gen 4
  • SDC: 2x 4-bit ports - SDC2 (SD 3.0) & SDC4 (SDIO 3.0)
  • Audio: Sound wire, I2S, DMIC
  • QLINK: QLINK0 5x Lanes
  • Qualcomm universal peripheral (QUP) v3 support - UART, I2C, I3C, SPI, & GPIOs
  • Wireless
  • WIFI 7 (802.11be, 2x2 MIMO)
  • Bluetooth® 5.3
  • Power
  • Onboard PMICs
  • VBAT input - 3.6V
  • Generic Specifications
  • Form Factor: 43 x 42 x 3.9 mm, 664 LGA pins
  • Operating Temperature: -25° C to +85° C
  • Major Companion ICs
  • Operating Temperature: -25° C to +85° C

Applications

Mistral’s MRD8550 SOM is a high-performance product development platform designed for edge processing and complex autonomous systems. Engineered for demanding AI, deep learning, and inference workloads, it is ideal for next-generation applications requiring advanced on-device intelligence.

Customization Services

Mistral offers Custom Engineering Design Services for the MRD8550 SOM and MRD8550 Falcon Kit to deliver tailored solutions that meet unique customer requirements. With expertise in core hardware, software design, and application development, we provide comprehensive support throughout the entire product development cycle. Our team works closely with clients to understand their specific needs and goals, ensuring optimized performance, efficiency, and cost-effectiveness. From concept to prototyping and final production, we deliver cutting-edge solutions that empower businesses to turn their innovative ideas into reality.



Custom protocol/Application software
Mistral can also provide product customization to support various peripherals, driver development, multi-core SoC application development, FCC/CE certification, IP6x enclosure design, thermal validation and system integration based on the customer need.

Product Longevity Program

MRD8550 SOM is designed specifically for applications requiring extended product life cycles. It is backed by Qualcomm Technologies’ Product Longevity Program, ensuring consistent, long-term availability of its product. With support expected until April 2033 providing a reliable 10-year support window for 8550 SOM’s life cycle.
