RF Antenna Design Services

RF Antenna Design services for telecom, aerospace, automotive, and IoT Applications

RF Antenna Design Services

Antenna design services involve the comprehensive process of creating and optimizing antennas to meet specific performance criteria and regulatory standards for various applications, such as telecommunications, aerospace, automotive, and IoT. Antenna design services begin with a thorough requirements analysis to understand the client’s needs and define technical specifications. The process includes conceptual design, advanced simulation and modeling using tools like HFSS or CST Microwave Studio, followed by physical prototyping.  RF Antenna Design is a critical aspect of any  wireless system. The range of any good RF product is highly dependent on the RF antenna design, the mechanical enclosure, and a good PCB Design and layout. With over 25 years of experience designing embedded products featuring technologies such as Bluetooth, RFID, NFC and LoRa to multi-band GSM, 3G, 4G/LTE, Wi-Fi and UWB systems, Mistral has the expertise to provide RF Antenna Design Services that cater to myriad product needs. RF Antenna Design is often one of the key reasons for the failure of an RF or wireless product. Irrespective of the RF/wireless technology used in a product, embedding the antenna into the product design can reduce the overall product cost and size. RF Antenna Design, Antenna Design ServicesRF Antenna Design is a complex process requiring high-end simulation tools and experienced RF antenna designers. The need for RF Antenna Design offering top-class performance is often overlooked during the product ID design stage. There is a direct tradeoff between antenna performance and mechanical constraints. Focus on a custom RF Antenna Design at the onset of the project will ensure optimal RF performance and  a faster time to market.

RF Antenna Design

Mistral is among the leading RF design companies in India with a well-equipped test and measurement infrastructure for RF Antenna Design services, of high-end spectrum analyzers, network analyzers, signal generators, LTE/3G testing tools as well as tools for simulation and prototyping. Our RF Antenna Design services is complemented by a strong eco-system of partners to handle small and large volume production. Mistral has the expertise and experience in working with small form factors and solving complex RF Antenna tuning issues. Mistral’s strength in RF Antenna Design services extend to active and passive RF and Microwave circuits, sub-systems, and full systems. Our RF Antenna Design services ensure impedance matching and reduced power losses between the antenna and active electronics and offer good transmission lines for a low loss conducted RF signal path. Our RF antenna design services team takes into account PCB material, layer stack, component tolerances and matching topology losses while designing the product.

RF Antenna Design Services

RF Antenna Design, Antenna Design ServicesMistral also provides custom RF antenna design for your specific product design. Our engineering team assists in designing an antenna to optimize your design for technical functionality and cost savings. Mistral has extensive expertise in RF Antenna Design, analog and digital circuits and productization of embedded devices in the Automotive, Wearables, Consumer, Medical, IoT and Industrial domain. Mistral uses state-of-the-art RF Antenna Design and simulation tools to optimize antenna performance for your specific application, addressing challenges such as gain and pattern regulatory restrictions, efficient matching to the radio system, and environmental and mechanical requirements.

Mistral’s highly experienced team works directly with customers to evaluate antenna characteristics and performance factors. The team is focused on developing optimal RF antenna design services, including frequency band, gain and pattern shaping, radiation efficiency, and required form factors. Mistral has experience in designing, testing and manufacturing of RF antennas from low band frequencies to mmWave. Click here to read a blog on Wearable Antenna Technologies and their applications and IoT Antenna Technologies and Factors Influencing Antenna Selection.

Mistral truly understands the partnership relationship and we consider them an integral part of our team.

Jay Ward

E-TROLZ

2018-03-23T06:08:06+00:00

E-TROLZ

Mistral truly understands the partnership relationship and we consider them an integral part of our team.
Mistral stepped in at a critical time and with the highest emotional quotient, helped us deliver the product on time.

Thiru Arunachalam

Peel

2018-03-23T06:07:22+00:00

Peel

Mistral stepped in at a critical time and with the highest emotional quotient, helped us deliver the product on time.
TI’s long and productive collaboration with Mistral has consistently yielded world class solutions to our customers.

Gerard Andrews

Texas Instruments

2018-03-23T06:10:44+00:00

Texas Instruments

TI’s long and productive collaboration with Mistral has consistently yielded world class solutions to our customers.
Mistral worked under high pressure scenario with challenging deadlines; which did cause a few issues but these where addressed and solved very fast.

Raoel Moeniralam

Prodrive B.V

2018-03-23T06:10:16+00:00

Prodrive B.V

Mistral worked under high pressure scenario with challenging deadlines; which did cause a few issues but these where addressed and solved very fast.
Mistral Team made communication easy! Between Skype calls; conference bridge calls; and emails, Mistral may have well been right next door in the US.

David Raistrick

En-Vision America, Inc

2018-03-23T06:09:49+00:00

En-Vision America, Inc

Mistral Team made communication easy! Between Skype calls; conference bridge calls; and emails, Mistral may have well been right next door in the US.
While Mistral is a very strong technology company, they make the difference with a human-touch that helped us arrive at a win-win situation in all deals!

Vikesh M.Udani

Aricent Technologies (Holdings) Ltd

2018-03-23T06:12:35+00:00

Aricent Technologies (Holdings) Ltd

While Mistral is a very strong technology company, they make the difference with a human-touch that helped us arrive at a win-win situation in all deals!
Mistral help us identify pertinent solutions that match our challenging needs. We appreciate the team’s quick and steadfast responses to our queries.

Mohanan Sivasankaran Moothedathu

HCL Technologies

2018-03-23T06:13:07+00:00

HCL Technologies

Mistral help us identify pertinent solutions that match our challenging needs. We appreciate the team’s quick and steadfast responses to our queries.
“Mistral’s FPGA/Hardware/PCB CAD team did a great job in completing our projects based on multiple RFSOC FPGAs and high-speed     Read More...

Gary Xu & Khurram Muhammad

Samsung

2022-05-29T05:10:51+00:00

Samsung

“Mistral’s FPGA/Hardware/PCB CAD team did a great job in completing our projects based on multiple RFSOC FPGAs and high-speed     Read More...
Mistral team demonstrated high professionalism, right from requirement capture through various stages of projects.    Read More...

Michael Bailey

Gooch & Housego

2022-05-29T05:16:42+00:00

Gooch & Housego

Mistral team demonstrated high professionalism, right from requirement capture through various stages of projects.    Read More...

Expertise

service icon

RF Antenna Design Technologies


  • Cellular (4G/3G/2G)
  • 5G NR FR1 (sub 6 GHz) / 5G NR FR2 (mmWave) / 5G Massive MIMO Antenna
  • mmWave – 60GHz (Industrial), 77GHz (Automotive), D Band (110-170GHz)
  • Custom ISM (433 MHz / 900 MHz / 2.4 GHz / 5.8 GHz)
  • GNSS and Satellite
  • Wi-Fi 802.11a/b/g/n/ac
  • Bluetooth and Bluetooth Low Energy (BLE)
  • RFID and IrDA
service icon

RF Antenna Types


  • Mistral’s RF Antenna Design Services support the following Antenna Types
  • Monopole
  • Dipole
  • Loop
  • Helical
  • Microstrip Patch Antenna
  • PIFA/IFA
  • Slot
  • Omni antennas for indoor application
service icon

System Architecture


  • Specification RF Antenna Design and development based on customer inputs, end-user needs and compliance requirements.
  • Designing and testing for EMI and EMC
  • Providing support for FCC/CE certification
  • Test Software Development to support Antenna verification, validation
service icon

Antenna Integration


  • COTS antenna selection & impedance matching
  • Cost-benefit & performance analysis
  • Co-location of multiple antennas & de-correlation
service icon

Antenna Testing


  • Measured 2D | 3D performance and efficiency
  • Peak gain, gain versus angle, efficiency, directivity, polarization.
  • PIMD Testing
  • OTA cellular pre-compliance. TRP, and TIS measurements
  • S-parameters | Return Loss | VSWR
  • Passive and active measurements
service icon

Power and Performance Optimization


  • Transmission Line Optimization
  • Transmission Line Design
  • Gerber Design Review
  • Performance / Certification Readiness Review
  • Filter Design
  • Matching
  • Noise Reduction
  • Simulation Tools- ANSYS (HFSS), CST, AWR. Keysight ADS

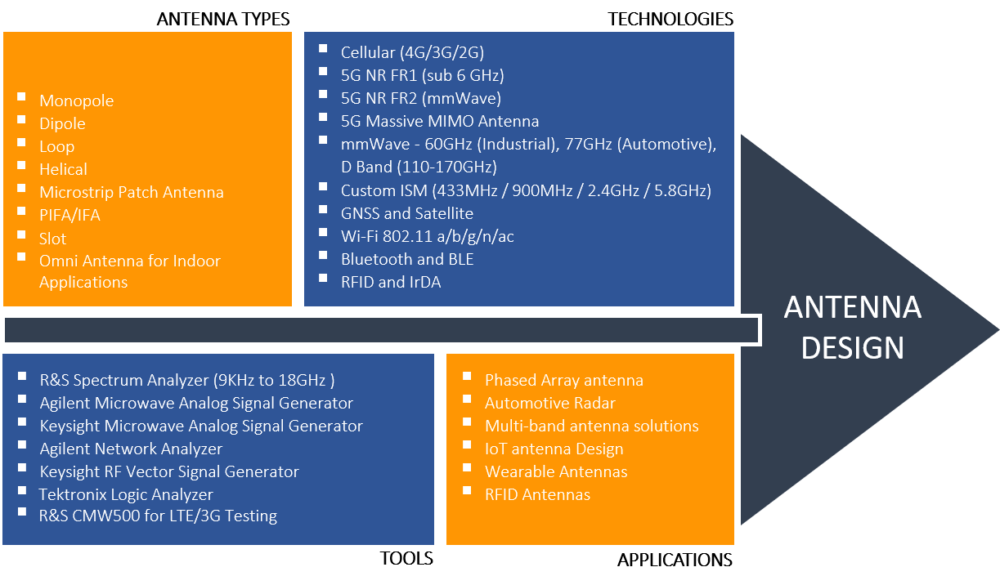

BLOCK DIAGRAM

Custom RF Antenna Design Services for Automotive, Wearable, Consumer, Medical, IoT and Industrial domains
