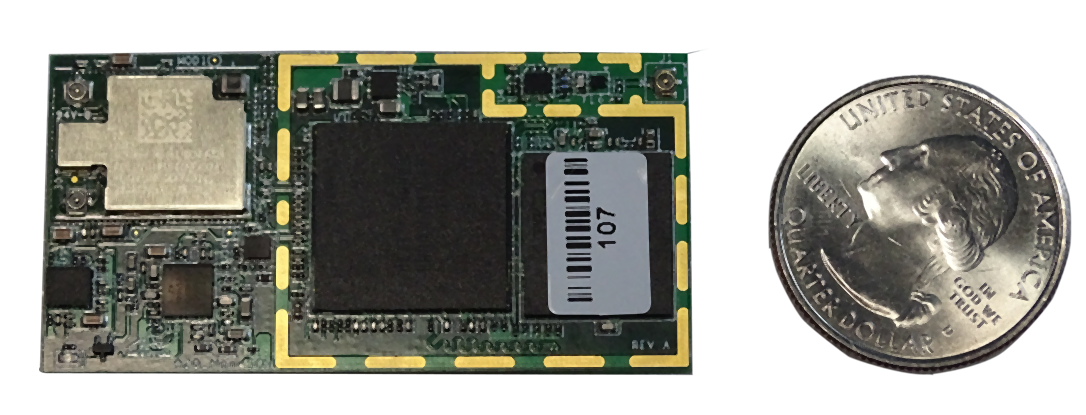

820 Nano SOM

The 820 Nano SOM from Mistral is an easy to use, ultra-compact, light-weight System on Module providing very high processing power. Based on Qualcomm SnapDragon 820, the 820 Nano SOM is ideal for advanced, next-gen embedded applications.

820 Nano SOM

820 Nano SOM, SD820 Nano SOM, SnapDragon 820, Snapdragon Nano SOM, SnapDragon SoMThe 820 Nano SOM from Mistral is an easy to use, ultra-compact, light-weight System on Module providing very high processing power. Based on Qualcomm SnapDragon 820 (SD820), the 820 Nano SOM is ideal for advanced, next-gen embedded applications. Measuring just 51mm x 26mm, this is one of the smallest Snapdragon based SOMs currently available in the market. The 820 Nano SOM is ideal for designing products like wearable computers, camera solutions, media gateways, Infotainment, drones, assistive devices and other smart gadgets requiring small package and high processing power.



FEATURES:



  • Qualcomm’s SnapDragon 820 with 2.2 GHz Qualcomm® Kryo™ quad core CPU
  • 3/4GB LPDDR4 RAM
  • 32/64GB UFS
  • Type-C Functionality
  • 4K Encode/Decode
  • On-board 9-axis MEMS
  • Scalable power management
  • Multiple Connectivity Solutions
  • Board-to-Board Expansion connector
  • Linux and Android Nougat support

* Note: For 128GB UFS variant, please write to us @ sales@mistralsolutions.com.



HIGHLIGHTS:



820 Nano SOM, SD820 Nano SOM, SnapDragon 820, Snapdragon Nano SOM, SnapDragon SoMType C Functionality

A next-generation solution for USB related applications, Type-C condenses most connections to one standard, covering all devices and enhancing usability.

820 Nano SOM, SD820 Nano SOM, SnapDragon 820, Snapdragon Nano SOM, SnapDragon SoM9-axis MEMS

The 820 Nano SOM features a 9axis- MEMS sensor enabling accurate acceleration, angular rate and geomagnetic measurement data for motion-tracking applications.

820 Nano SOM, SD820 Nano SOM, SnapDragon 820, Snapdragon Nano SOM, SnapDragon SoMUFS Memory

UFS 2.0 internal memory is designed for improved performance. The 820 Nano SOM offers storage up to 128GB UFS2.0 ensuring improved device responsiveness.

820 Nano SOM, SD820 Nano SOM, SnapDragon 820, Snapdragon Nano SOM, SnapDragon SoMDisplayPortTM (DP)

DisplayPort is the first AV protocol that delivers resolutions of 4K and beyond. Mistral’s 820 Nano SOM supports Display Port (DP) over Type C functionality (USB-C).

Specifications:

SnapDragon 820 (APQ8096)

  • Quad-core Kryo™ 2.2 GHz 64-bit CPU
  • Adreno 530 GPU
  • Hexagon 680 DSP
  • Spectra ISP

PMIC

  • PMI8996
  • PM8996

Memory

  • 3/4GB LPDDR4 RAM POP @ 1866 MHz

Storage

  • 32/64GB UFS 2.0

Wireless

  • Wi-Fi 802.11a/b/g/n/ac 2.4/5.0 GHz2x2 MU-MIMO
  • Bluetooth 4.2
  • Wireless interface terminated in RF connector
  • GPS – Qualcomm IZat™ Gen 8C

Audio CODEC

  • WCD9335

Display

  • Display Port (DP) over Type-C
  • 1x HDMI 2.0 up to 4096×2160, 60fps
  • 2x MIPI-DSI 4-lane, 60fps, up to 2560×1600 (single port), 4096×2160 (dual port)

Camera

  • 3x MIPI-CSI 4-lane, dual ISP, up to 28MP

PCIe

  • 2x PCIe v2.1

9-Axis MEMS Sensor

USB

  • 1x USB 3.0 OTG
  • 1x USB 2.0 host

SD

  • 1x 4Bit SDIO

Audio

  • 3x Analog MIC, 2x Digital MIC
  • 1x Headphone out, 2x Analog Line Out
  • 1x PDM, 1x I2S

Configurable Serial Ports

  • 6x port configurable as I2C,SPI,UART or GPIO

Operating Environment

  • Input Power – 3.5V to 4.2V
  • Operating Temperature 0°C to +70°C (Commercial)

Size

  • Dimension:51mm x 26mm
  • Weight: 9gm

RoHS and WEEE compliant

820 Development Kit

The 820 Development Kit from Mistral is a full featured, easy-to-use, scalable development platform built around the Quad-core Kryo™ 2.2 GHz 64-bit CPU. The 820 Development Kit is based on modular architecture and consists of the Qualcomm SnapDragon 820 based 820 Nano SOM and a carrier board. The carrier board hosts the Wireless On-board Antenna, Ethernet controller, connectors and expansion headers.

Additionally, Mistral also offers optional adaptor boards for improved/increased scope of development around the 820 Nano SOM. These include LCD, Camera, and Battery Charger boards.

820 Nano SOM, SD820 Nano SOM, SnapDragon 820, Snapdragon Nano SOM

FEATURES:

  • Qualcomm’s 2.2GHz Qualcomm® Kryo™ quad core CPU
  • 3/4GB LPDDR4 RAM
  • 32/64GB UFS
  • Type-C Functionality
  • 4K Encode/Decode
  • On-board 9-axis MEMS
  • Scalable power management
  • Multiple Connectivity Solutions
  • Board to Board Expansion connector
  • Linux and Android Oreo support

* Note: For 128GB UFS variant, please write to us @ sales@mistralsolutions.com.



820 NANO SOM



SnapDragon 820 (APQ8096)

  • Quad-core Kryo™ 2.2 GHz 64-bit CPU
  • Adreno 530 GPU
  • Hexagon 680 DSP
  • Spectra ISP

PMIC

  • PMI8996
  • PM8996

Memory

  • 3/4GB LPDDR4 RAM POP @ 1866 MHz

Storage

  • 32/64GB UFS 2.0

Wireless

  • Wi-Fi 802.11a/b/g/n/ac 2.4/5.0 GHz2x2 MU-MIMO
  • Bluetooth 4.2
  • Wireless interface terminated in RF connector
  • GPS – Qualcomm IZat™ Gen 8C

Audio CODEC

  • WCD9335

Display

  • Display Port (DP) over Type-C
  • 1x HDMI 2.0 up to 4096×2160, 60fps
  • 2x MIPI-DSI 4-lane, 60fps, up to 2560×1600 (single port), 4096×2160 (dual port)

Camera

  • 3x MIPI-CSI 4-lane, dual ISP, up to 28MP

PCIe

  • 2x PCIe v2.1

9-Axis MEMS Sensor

USB

  • 1x USB 3.0 OTG
  • 1x USB 2.0 host

SD

  • 1x 4Bit SDIO

Audio

  • 3x Analog MIC, 2x Digital MIC
  • 1x Headphone out, 2x Analog Line Out
  • 1x PDM, 1x I2S

Configurable Serial Ports

  • 6x port configurable as I2C,SPI,UART or GPIO

Operating Environment

  • Input Power – 3.5V to 4.2V
  • Operating Temperature 0°C to +70°C (Commercial)

Size

  • Dimension:51mm x 26mm
  • Weight: 9gm

RoHS and WEEE compliant



CARRIER BOARD



Type-C Integrated Peripheral

  • USB 3.0 (Dual Role Port)
  • Display Port (Source)
  • Power Delivery (Dual Role Port)

Display

  • HDMI 2.0

Extended Storage Memory

  • Micro SD Card Connector

Audio

  • 3.5mm Audio Jack (Headset & Mic)

Audio Expansion Header

  • 2x Digital MIC
  • 2x Analog MIC
  • 2x Analog Lineout
  • 1x PDM

Connectivity

  • 2x USB 2.0 Host
  • Gigabit Ethernet Port
  • Mini PCIe
  • Debug UART (MicroUSB)

Sensor Expansion Header

  • SSC (UART/I2C/SPI)

Camera Expansion Header (2)

  • MIPI-CSI (1x 4-Lane)
  • MIPI-CSI (2x 4-Lane)

Display Expansion Header

  • MIPI-DSI (1x 4-Lane)

BLSP Expansion Header



Battery Expansion Header

Wireless Antenna

  • 2x Wi-Fi/BT
  • 1x GPS Receiver

User Interface

  • Keys
  • RGB LED

Dimension

  • 180mm x 115mm

Camera Adaptor Board

The Camera Adaptor Boards from Mistral are designed to realize imaging applications with Mistral’s 820 Development kit using OmniVision sensors with resolutions ranging from 2MP to 13MP.

Designers can choose to use any of these different Camera Adaptor Boards depending on their application’s requirements.

820 Nano SOM, SD820 Nano SOM, SnapDragon 820, Snapdragon Nano SOM, Camera Adaptor Board

SPECIFICATIONS:

  • Supports high-performance sensors (high sensitivity, low crosstalk, low noise, improved quantum efficiency) with image resolutions up to 4K
  • Image sizes: 3264×2448, 2816×1584, 1944×1944, 1080p (1920×1080), 1080×1920 and more
  • Output formats: RAW RGB, RGB565/555/444, YUV422/420, YCbCr422
  • No system startup delay (Output Current Path enabled)
  • Input Clock Frequency: 6 ~ 27 MHz
  • Ultra-low power mode (ULPM)
  • Supports LED and flash strobe

CUSTOMIZATION:

The Camera Adaptor Boards are designed to interface with the primary camera expansion port of the 820 Development Kit. Customization services are for various applications such as:

  • Design and development of additional Camera Adaptor
  • Boards to realize up to 3 cameras on the 820 Development kit
  • Video input adaptor board to realize digital and analog video inputs
  • Adapter Boards to interface with camera expansion connectors of other platforms

Display Adaptor Board

The Display Adaptor Board from Mistral is designed to realize display and user interface functionality with Mistral’s 820 Development kit using a HD LCD and a capacitive touchscreen.

The 820 Development Kit from Mistral is a powerful development platform built around the Qualcomm Snapdragon 820 (APQ8096) SoC. Based on a dual board architecture, the development kit consists of Mistral’s 820 Nano SoM that comprises of the APQ8096 Application Processor with associated PMIC, Memory, components for Wireless Connectivity, Sensors and Audio and a Carrier Board that provides access to interfaces such as Gigabit Ethernet port, USB over Type-C, Camera and LCD among others.820 Nano SOM, SD820 Nano SOM, SnapDragon 820, Snapdragon Nano SOM, Display adaptor Board

SPECIFICATIONS:

  • 5” LCD panel with HD resolution (720p)
  • 5-point multitouch capacitive touchscreen
  • Backlight intensity control

CUSTOMIZATION:

The Display Adaptor board is designed to interface with the Display expansion port of the 820 Development Kit.  Mistral also provides customization services on the Display Adaptor Board for applications such as:

  • Realizing support for LCDs of different sizes and resolutions and near-eye displays for Virtual and Augmented Reality applications
  • High Definition Video interfaces (eDP, HDMI)

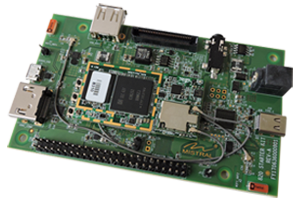

820 Starter Kit

OVERVIEW

The 820 Starter Kit from Mistral is a low-cost development platform built around the Qualcomm Snapdragon 820 (APQ8096) SoC. Based on a dual board architecture, the starter kit consists of Mistral’s 820 Nano SOM & a Carrier Board that provides access to interfaces such as USB over Type-C & Camera among others.

The 820 Nano SOM is designed based on Qualcomm’s 64-bit quad-core CPU, the Snapdragon 820 (APQ8096) SoC for realizing embedded applications. The Snapdragon 820 (APQ8096) processor with its cutting-edge processing capabilities and power efficient features makes it possible to support the ultimate in connectivity, graphics, image processing and efficiency.

The 820 Starter Kit is designed to exercise the primary features provided on 820 Nano SOM. Custom expansion connectors help customize the starter kit to realize features beyond the existing hardware. The 820 Starter Kit is ideal for product designers intending to realize the features of their product using the 820 Nano SOM.

In addition, Mistral provides Camera Adaptor Boards that can be accommodated on the expansion connectors to enable camera applications. The Starter Kit comes with Android Oreo & Yocto Linux BSPs.

Specification

  • Snapdragon SD 820 (APQ8096)
    • Quad Core Kryo 2.2 GHz 64-bit CPU
    • Adreno 530 GPU
    • Hexagon 680 DSP
    • Spectra ISP
  • PMIC
    • PMI8996
    • PM8996
  • Memory
    • 3/4 GB on-board PoP LPDDR4 @ 1866 MHz
    • 32/64 GB UFS 2.0 (1-Lane)
  • Wireless
    • Wi-Fi 802.11 b/g/n/ac 2.4/5.0 GHz 2×2 MU-MIMO
    • 9-Axis MEMS Sensor
    • GPS – Qualcomm IZatTM Gen 8C
  • Bluetooth 4.1 HS
    • Interfaces via Board-to-board Connectors
    • Type-C
    • Display
      • HDMI 2.0
    • Audio
      • 5mm Audio Jack (Headset & Mic)
    • Connectivity
      • 1x USB 2.0 Host
      • Debug UART (MicroUSB)
    • Camera Expansion Header
      • MIPI-CSI (2x 4-Lane)
    • GP Expansion Header
    • Wireless Antenna
      • 2x Wi-Fi/BT
    • User Interface
      • Keys
    • Dimension: 100mm x 55mm
  • Android (Oreo) & Yocto Linux 2.0 – Software
    • Display
    • 4K Display over HDMI
    • Camera (Optional Adaptor)
      • 4K Image Capture
      • 4K Video Preview over HDMI (Android)
      • 4K Video Record
      • Video Streaming
    • Connectivity
      • Wi-Fi
      • Bluetooth
      • USB SS OTG
      • USB Host (MSC, HID)
    • User Interface
      • User Keys
    • 9-Axis Sensor
    • Multimedia (Android)
      • Multi format video playback
      • Multi format Audio Record & Playback
    • Efficient Power Management

820 Development Kit vs. 820 Starter Kit

A quick fact comparison between Mistral’s full-featured development platform 820 Development Kit & its trimmed down version 820 Starter Kit.

Software

The 820 Development Kit supports Android 7 (Oreo and Nougat) and Yocto 2.0. The platform enables rapid software development as it supports all standard Application Programming Interfaces provided by Android and Yocto Linux 2.0. The software available with the 820 Development Kit provides support for the following features.



ANDROID (Oreo / Nougat)



Display

  • 4K Display over HDMI
  • Display Port over Type-C
  • Display over LCD (Optional Adaptor)

Camera (Optional Adaptor)

  • 4K Image Capture
  • 4K Video Preview over HDMI
  • 4K Video Record
  • Video Streaming

Connectivity

  • WiFi
  • Bluetooth
  • Gigabit Ethernet
  • USB SS OTG
  • Mini PCIe
  • USB Host (MSC, HID)

User Interface

  • Touchscreen
  • User Keys

9-Axis Sensor

Extended storage with Micro SD

Multimedia

  • Multi format video playback
  • Multi format Audio Record and Playback

Efficient Power Management



YOCTO LINUX 2.0



Display

  • 4K Display over HDMI
  • Display over LCD (Optional Adaptor)

Camera (Optional Adaptor)

  • 4K Image Capture
  • 4K Video Record
  • Video Streaming

Connectivity

  • Wi-Fi
  • Bluetooth
  • Gigabit Ethernet
  • USB OTG
  • Mini PCIe
  • USB Host (MSC, HID)

User Interface

  • User Keys

9-Axis Sensor

Extended storage with Micro SD

Efficient Power Management

Infographics

A quick overview of the 820 Nano SOM from Mistral, that will redefine connected technology.

SnapDragon 820, 820 Nano SOM, SnapDragon 820 Development Kit

FAQs

GENERAL



1.         What is delivered with the 820 Development Kit?

The following are delivered with an order of 820 Development Kit.

  • 820 Nano SoM
  • Carrier Board
  • Android Nougat (programmed to 820 Nano SOM)
  • Binary Images for Linux kernel, Android Nougat, Yocto 2.0 (online)
  • Quick Start Guide (online)
  • User Manual (online)

In addition, the following accessories are required to enable software development with the platform.  These are available through 3rd party vendors

  • Power Supply (12V)
  • USB Cable (Debug)
  • Type-C Cable
  • Any standard HDMI Display (Monitor / Television)

2.        What is delivered with the 820 Nano SOM?

The following are delivered with an order of 820 Nano SOM

  • 820 Nano SOM
  • Android Nougat (programmed to 820 Nano SOM)
  • Binary Images for Linux kernel, Android, Yocto 2.0
  • Quick Start Guide (online)

3.         Where can I obtain documentation related to the 820 Development Kit

Customers need to register their 820 Nano SOM and/or 820 Development Kit using the Product Registration section on our website  (https://www.mistralsolutions.com/product-engineering-services/support/product-registration-2/).  The following documents are available for download for customers upon registering their product(s)

  • Quick Start Guide
  • 820 Development Kit Schematics
  • User Manual



TECHNICAL



4.        What software is provided with 820 Nano SoM

The 820 Nano SOM is programmed with Android 7 (Nougat) when it is delivered.

Customer need to register their product through our website (https://www.mistralsolutions.com/product-engineering-services/support/product-registration-2/).  Upon completion, the following are provided

  • Pre-built binary images for Linux kernel and Android 7 (Nougat)
  • Pre-built binary images for Linux kernel and Yocto 2.0
  • Source code for Linux kernel, Android 7 (Nougat), Yocto 2.0
  • Any available Software Updates

5.         How will I obtain source code and built it for the 820 Development Kit?

Upon completion of the product registration (https://www.mistralsolutions.com/product-engineering-services/support/product-registration-2/), customers will be able to access Documentation, source code for Linux kernel, Android and build scripts to configure and build the sources.

All software updates, as and when available will also be accessible to customers through this portal

6.         How do I enable the development platform with software I have built?

The Software User Manual provided with the 820 Development Kit has information related to

  • Setting up a build environment for Linux kernel, Android, Yocto
  • Configuring and building the sources
  • Programming the built binary images to the platform
  • Functionality verification of features available

7.         Can I interface other hardware on the 820 Development Kit?

Yes, most of the primary interfaces on the Snapdragon 820 processor are exposed through the expansion connectors present on the 820 Development Kit.

Adaptor boards are available and can also be custom designed by Mistral to accommodate other hardware to the 820 Development Kit and the required drivers for them need to be developed in order to realize the required functionality.

8.         What interfaces are available through expansion connectors?

        Standard Connector

  • PCIe Signals + USB 2.0 (MiniPCIe formfactor)

        Custom Connector

  • Audio (Analog audio In/Out, Digital Audio)
  • Display (4-Lane MIPI DSI)
  • Camera (1×4-Lane MIPI-CSI, 2×4-Lane MIPI-CSI)
  • Sensor Core (SSC – I2C/UART/SPI)
  • BLSP (GPIO, PWM, SPI, I2C)

9.         What is the default display interface on the 820 Development kit?

The default display interface on the 820 Development Kit is HDMI.  The Carrier board has a HDMI connector through which any standard HDMI display can be used to view the Android user interface.



10.         I don’t see a camera or LCD on the 820 Development Kit.  How can I prototype requirements that need a camera and display?

Camera is a feature that is realized using the adaptor board.  This needs to be obtained separately and does not ship with the 820 Development Kit.

When connected to the Carrier board through the custom expansion header, the camera adaptor board makes the 820 Development Kit capable of realizing camera based applications.

LCD can be realized using another custom adaptor board.  However, the 820 Development Kit supports display through HDMI by default.

11.         I want to use a camera module of my choice.  How can this be done?

The camera adaptor board needs to be customized to accommodate the sensor chosen by a customer.  This will include software development to realize the functionality of the chosen sensor on the Development Kit.

The camera adaptor board is designed for quick customization and hence the turnaround time to modify the design to accommodate a different camera sensor would be short.  Mistral can provide the required customization support at an additional cost.

12.         What technical support is provided by Mistral?

Up to two hours of installation support is provided through email to help customers bring up the development kit with the software programmed on the 820 Nano SOM.

Further technical support will be available at an additional cost.  Please contact sales@mistralsolutions.com for further details.

13.         Can the 820 Nano SoM platform be customized?

Yes, Mistral can customize the 820 Nano SoM and the carrier board if required, as per the requirements of a client.

Please get in touch by emailing us at sales@mistralsolutions.com

14.        Which 820 processor is used on the Nano SOM?

The 820 Nano SOM is built around the Snapdragon APQ8096 System-On-Chip (SOC).

15.         What types of memory is supported on the 820 Development Kit?

The 820 Nano SOM contains a 32GB UFS for storage and 4 GB LPDDR4.  In addition, the carrier board provides an SD Card connector which can provide extended storage using MMC, SD and SDXC cards

APPLICATIONS

AR/VR
Glasses

Wearable Headset
Computers

Drones

High-end cameras

Medical Devices

Assistive Devices

Resources

  • Product Brief

    820 Nano SOM

  • Product Brief

    820 Development Kit

  • Product Brief

    820 Starter Kit

  • Product Brief

    Camera Adaptor Board for 820 Development Kit

  • Product Brief

    Display Adaptor Board for 820 Development Kit

  • Technical Documents

    820 Nano SOM Pinout Information
