Active Member of the

TI Design Network

Product-on-Modules based on

TIs ARM Sitara SoCs

EVMs and Add-on Modules for

accelerated product development

PRODUCTS

AM65x Industrial SoM

The AM65x Industrial SOM is an easy to use, compact, light-weight System on Module providing very high processing power for Industrial applications.

  • Quad Cortex A53 processor with Dual-core ARM Cortex-R5F
  • Supports up to 4GB DDR4 with 1GB ECC and 32GB eMMC
  • Linux, Helix Hypervisor, VxWorks and Android Support
  • Multi-protocol support: ModBus, CANopen, ProfiNET, ProfiBUS, Ethernet/IP, EtherCAT, EnDAT/EQEP, CCLink IEField, cycle-by-cycle PWM control
  • One Gigabit Ethernet PHY (CPSW)
  • 6 x Gigabit Ethernet Ports (PRU_ICSSG)
  • On-board power regulators and Reset circuitry
  • Form Factor: 63 x 90mm
  • Supports CAN, USB, SPI, UART, I2C and GPIOs Interface
  • Time-Sensitive Networking (TSN) support

Know more

mmWave Radar Technology

Based on Texas Instruments' AWR and IWR mmWave Radar sensors, Mistral's mmWave Radar modules are compact, light-weight RADARs providing superior functionalities for Industrial, Robotics, Healthcare, and Automotive applications.

  • FMCW Transceiver with Integrated PLL, Transmitter, Receiver, Baseband and ADC
  • 60-64GHz and 76-81GHz Coverage with 4GHz Continuous Bandwidth
  • Four Receive Channels and Three Transmit Channels
  • Built-in Calibration and Self-test
  • ARM® Cortex® R4F-Based Radio Control System
  • Hardware Accelerator for Signal Processing (FFT, Filtering and CFAR Processing)
  • C674x DSP for FMCW and Advanced Signal Processing
  • Supports TI SDK 3.03 (60GHz Aop and 77GHz AoPCB) and SDK 3.02 (60GHz AoPCB)
  • Sensor Fusion Kit supports CSI2 Camera
  • Fixed and floating-point TMS320C66x digital signal processor (DSP) generation cores
  • Vision AccelerationPac (EVE)
  • Dual-Cortex-M4 processors

Know more

AM437x PoM

The AM437x POM is a low cost, small footprint, high performance; easy-to-use Product on Module
built around the powerful 800MHz/1GHz Sitara AM437x SoC from Texas Instruments.

  • 800MHz/1GHz ARM Cortex-A9 processor with multi core PRU-ICSS
  • WiFi + BT module with Antenna
  • 1 GB DDR3L Memory with Micro SD Card Slot
  • HDMI output support
  • USB & DC powered
  • PMIC to power processor, memory and other peripherals
  • Dimension: 125mm X 85mm
  • Expansion headers: LCD, CAM, Ethernet, CAN, I2C, SPI, ADC, PWM, McASP, MMC etc.
  • USB 2.0 OTG and  Host
  • 2 x Gigabit Ethernet
  • Audio In/Out

Know more

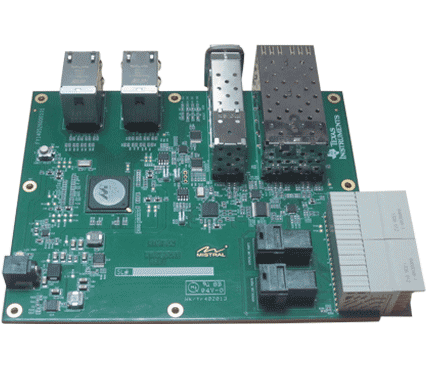

RTM-Break-out Card

The Rear-transition Module – Breakout Card (RTM-BOC) is an eight layer plug-in module for the Keystone II family of Edison, Hawking and Kepler EVMs
showcasing the multi-core DSP+ARM KeyStone II System-on-Chips from Texas Instruments.

  • Eight-layer PCB with IT168 dielectric material for high speed data support
  • Fully Open Source Linux Board Support Package
  • Two port (Each port of 4 lanes) Hyperlink interface
  • Four lane 2 Generation Antenna interface (AIF2)
  • XFI interface
  • Quad port PHY
  • 10/100/1000 Mbps data rate support
  • Two dual port RJ45 connectors with integrated magnetics and LEDs
  • Two Hard Metric ZD type μTCA connectors
  • Power from onboard +12V DC jack or power from EVM board through μTCA connector.

Know more

SERVICES

We offer a wide array of product design, custom hardware design

and software development services on TIs ARM SitaraTM, Media Processors

mmWave RADAR Chipsets, and DSP platforms.

  • Product Design Services
  • Hardware Design Services
  • Firmware and BSP
  • Audio & Video
  • Test & Validation
  • Production Support

APPLICATIONS

Wearable Electronics

Medical Electronics

Industrial Gateways

Home Automation

Assistive Devices

ePOS

Biometrics

ADAS
