3U VPX QorIQ SBC-XMC

3U VITA-46 VPX based SBC built around Freescale QorIQ T2080 and Virtex-7 FPGA with optional XMC Mezzanine cards as per VITA 42 standard. The SBC is ideally suited for computation/DSP intensive application.

3U VPX NXP QorIQ and Xilinx Virtex7 SBC, 3U VPX NXP QorIQ SBC, 3U VPX QorIQ SBC

Overview

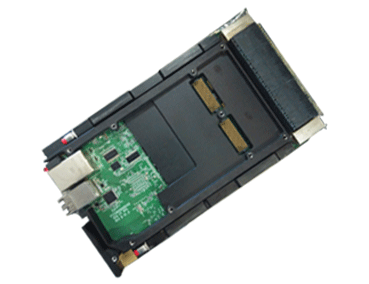

The 3U VPX QorIQ-V7 SBC from Mistral is a 3U VITA-46 VPX based Single Board Computer built around the Freescale QorIQ T2080 processor (The T2080 with 4 dual-threaded 64-bit Power  Architecture Cores, each equipped with an Altivec vector processing engine) & Xilinx Virtex-7 FPGA (optimized for highest system performance and capacity with a 2X improvement in system performance) an XMC site. Both these devices make the 3U VPX QorIQ-V7 a high capability hardware with powerful I/O connectivity providing an impressive amount of processing in a very small footprint.

The 3U VPX QorIQ-V7 SBC supports an optional XMC Mezzanine cards as per VITA 42 standard.

The 3U VPX QorIQ-V7 SBC is available in 1" VPX-REDI format. The VPX REDI version comes with covers to support two level maintenance requirements. The 3U VPX QorIQ-V7 SBC provides the highest computing density in a 3U VPX form factor. The SBC is ideally suited for computation/ DSP intensive application.

TECHNICAL SPECIFICATIONS

  • Freescale QorIQ T2080 processor & Xilinx Virtex-7 FPGA
  • Completely user programmable Xilinx Virtex-7 FPGA with 3GB DDR3L SDRAM
  • Freescale QorIQ T2080 processor (4x 64-bit PA Cores, each equipped with Altivec vector processing engine)
  • T2080 processor with 2GB of DDR3L SDRAM with ECC and two Gigabit Ethernet interfaces
  • PCIe, IFC (memory bus) and GPIO connectivity between processor and FPGA
  • Backplane Connectivity through PCIe and GTX/GTH Links from FPGA
  • Backplane Connectivity through PCIe links from Processor
  • Conduction-cooled supporting a temperature range of -40 C to +71 C
  • Linux / VxWorks BSP
